Product Description

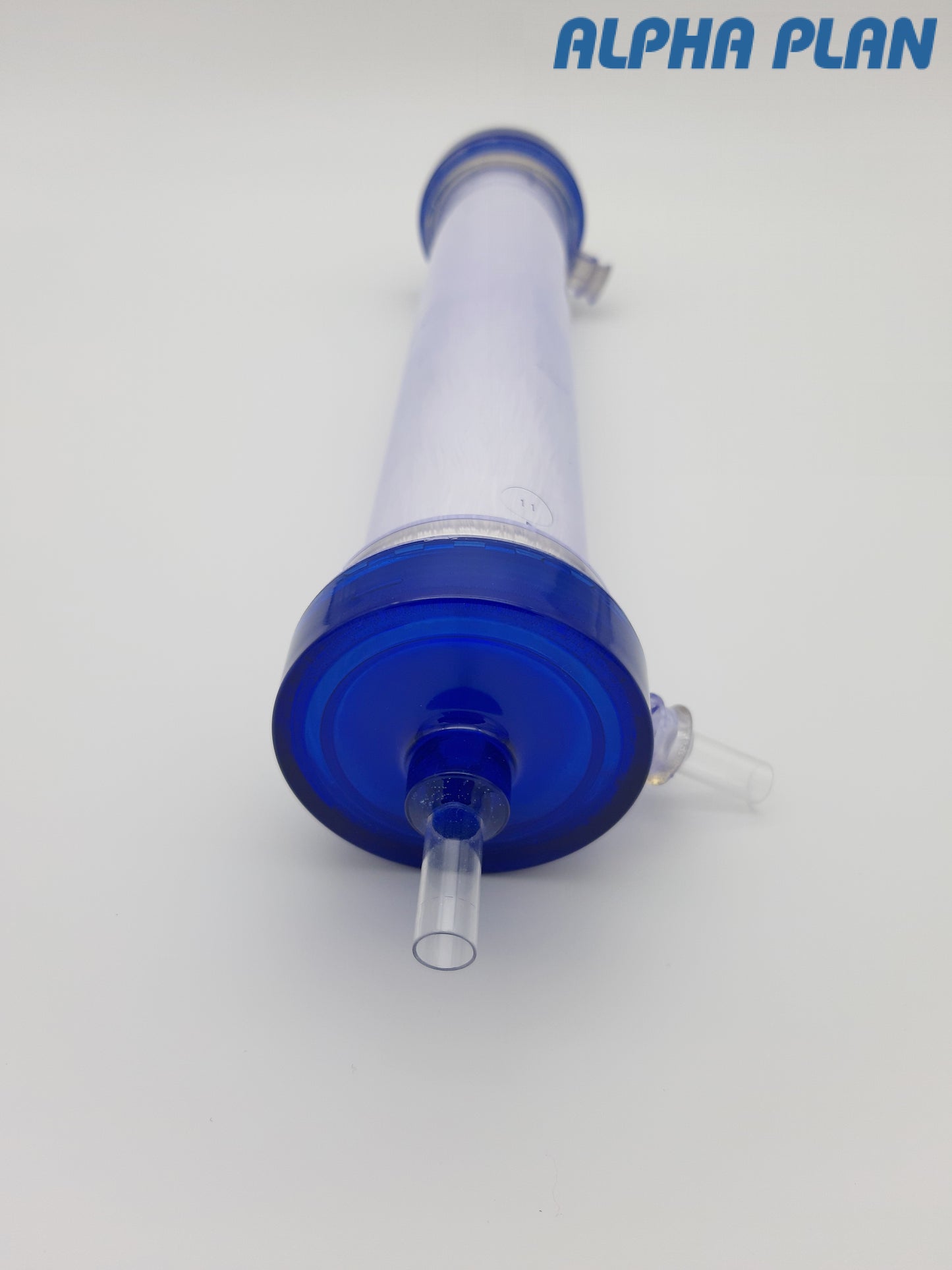

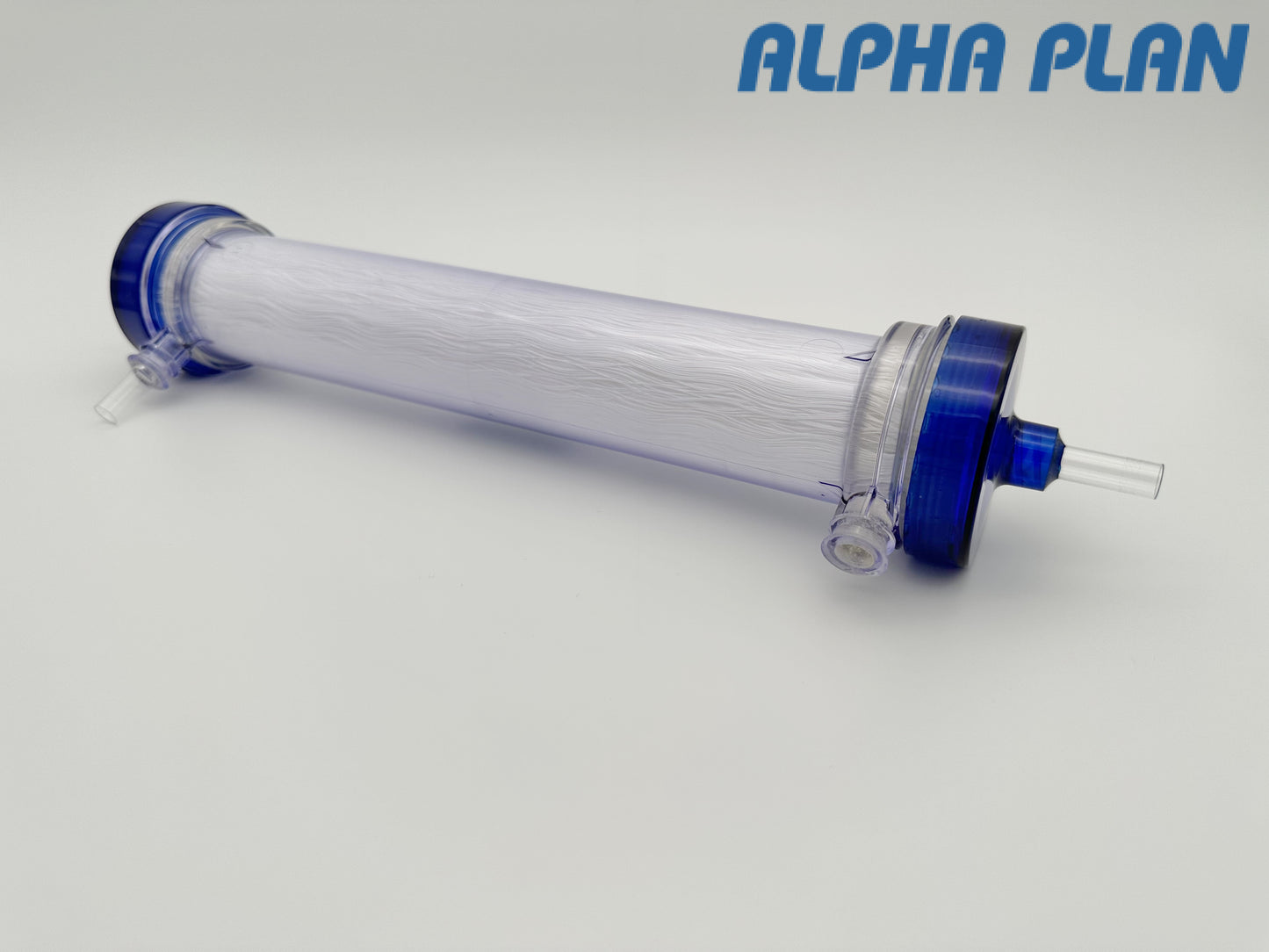

Our hollow fiber filter UF-PSH-15 is the perfect solution for water applications! This product is single-use and has been integrity tested to ensure it is ready to use. With an effective membrane area of 1.4 m², this filter provides excellent filtration performance.
In addition, our hollow fiber filters can be used for upscaling - from the laboratory to pilot and process scale. You can ensure reliable filtration in any phase of your project with these products.
Product Specification
| Art. No. | Product | Dimension (Ø/Length) w/o connectors | Membrane | MWCO | Connection ports | Filter area | Max. operation pressure | Filtration-capacity |
|---|---|---|---|---|---|---|---|---|

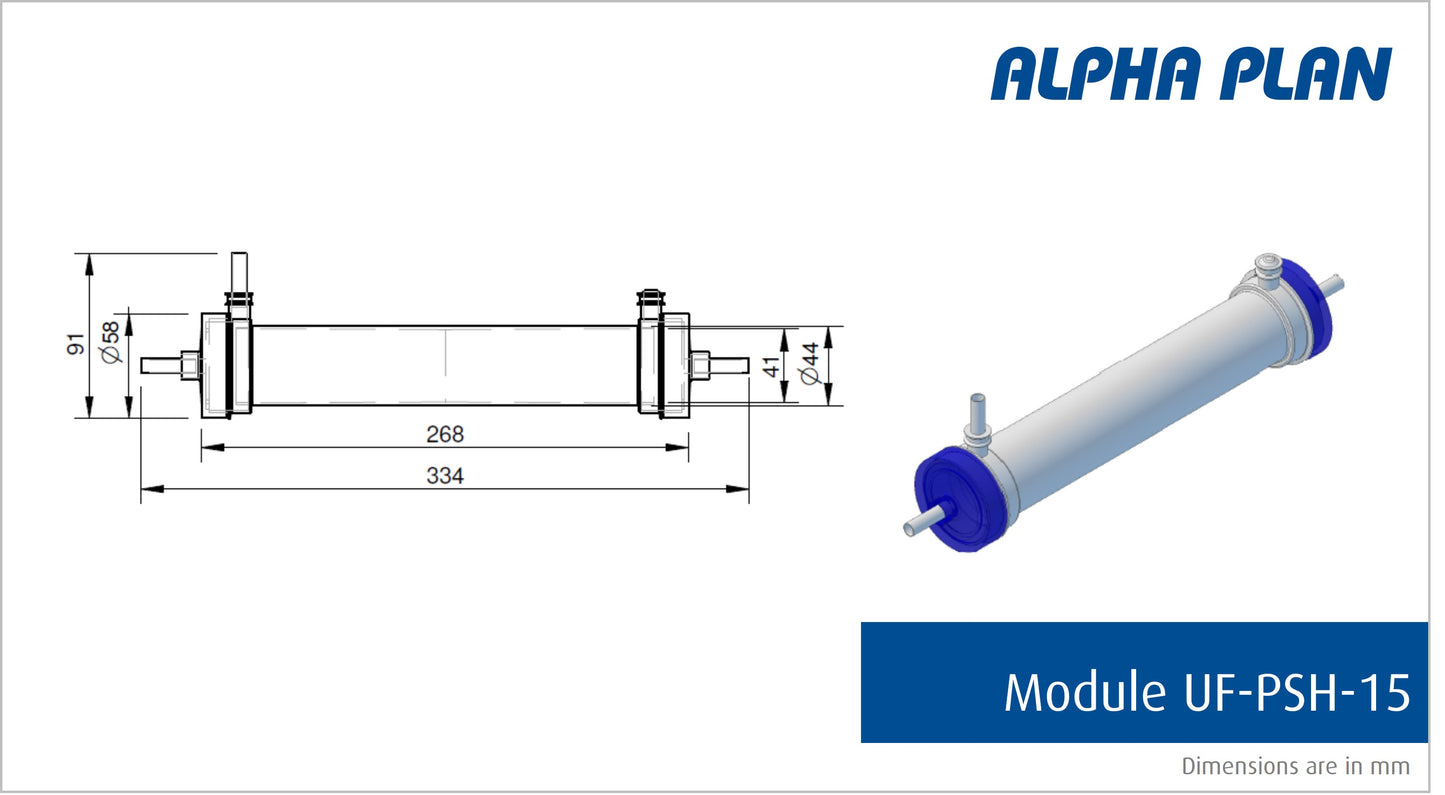

| 510129 | Waterfilter UF-PSH-15 | 41 / 260 mm | Polysulfone | 20 kDa | Tube fitting OD 8.0mm | 1.4 m² | 3 Bar | 240 l/h |
MWCO – Molecular Weight Cut-Off; ICS – Intra Capillary Space; ECS – Extra Capillary Space; TMP – Trans-membrane pressure, FLC – Female Luer Connector; Ø – housing diameter; Length – housing length w/0 end caps and connectors
