Product Description

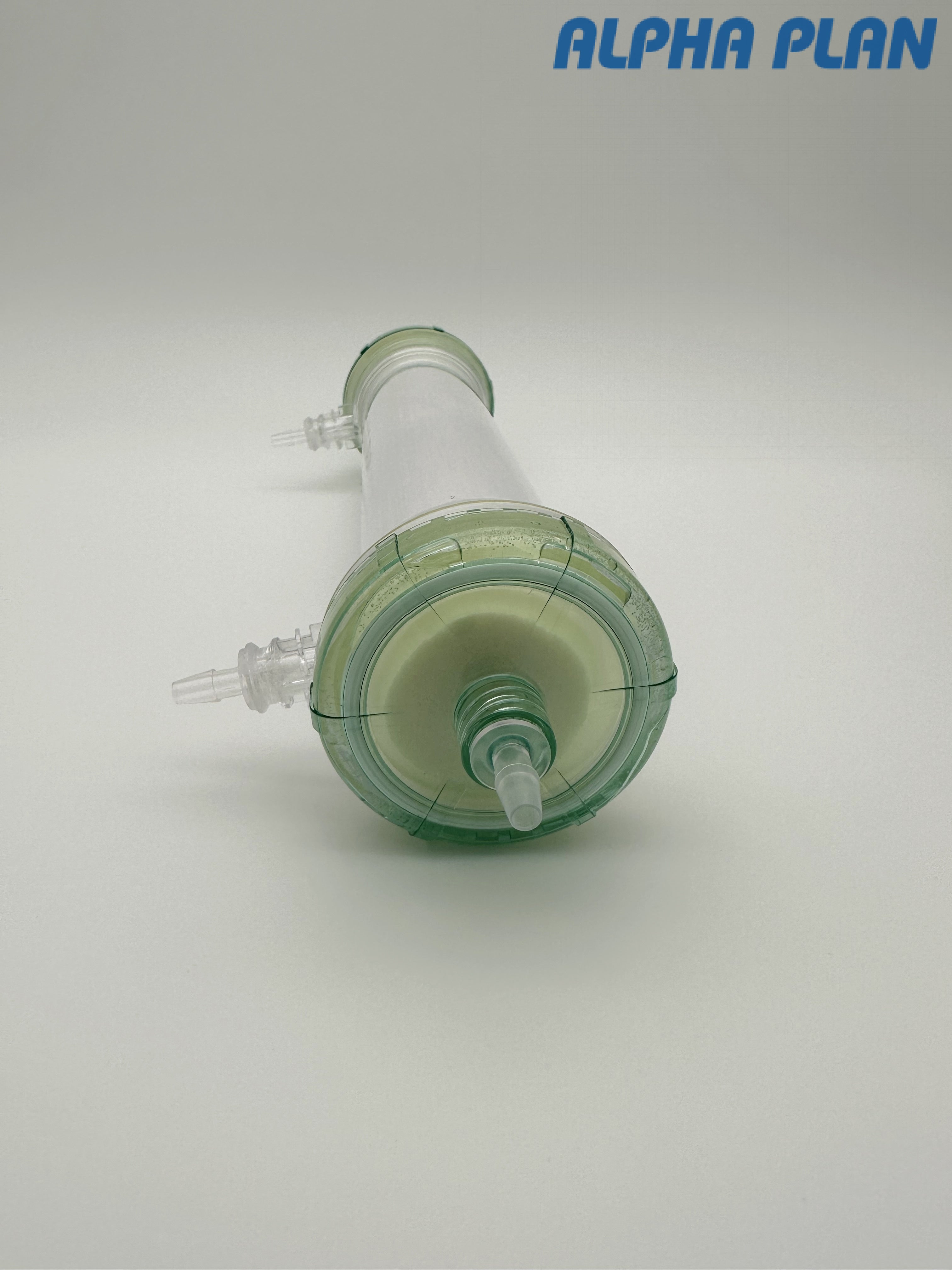

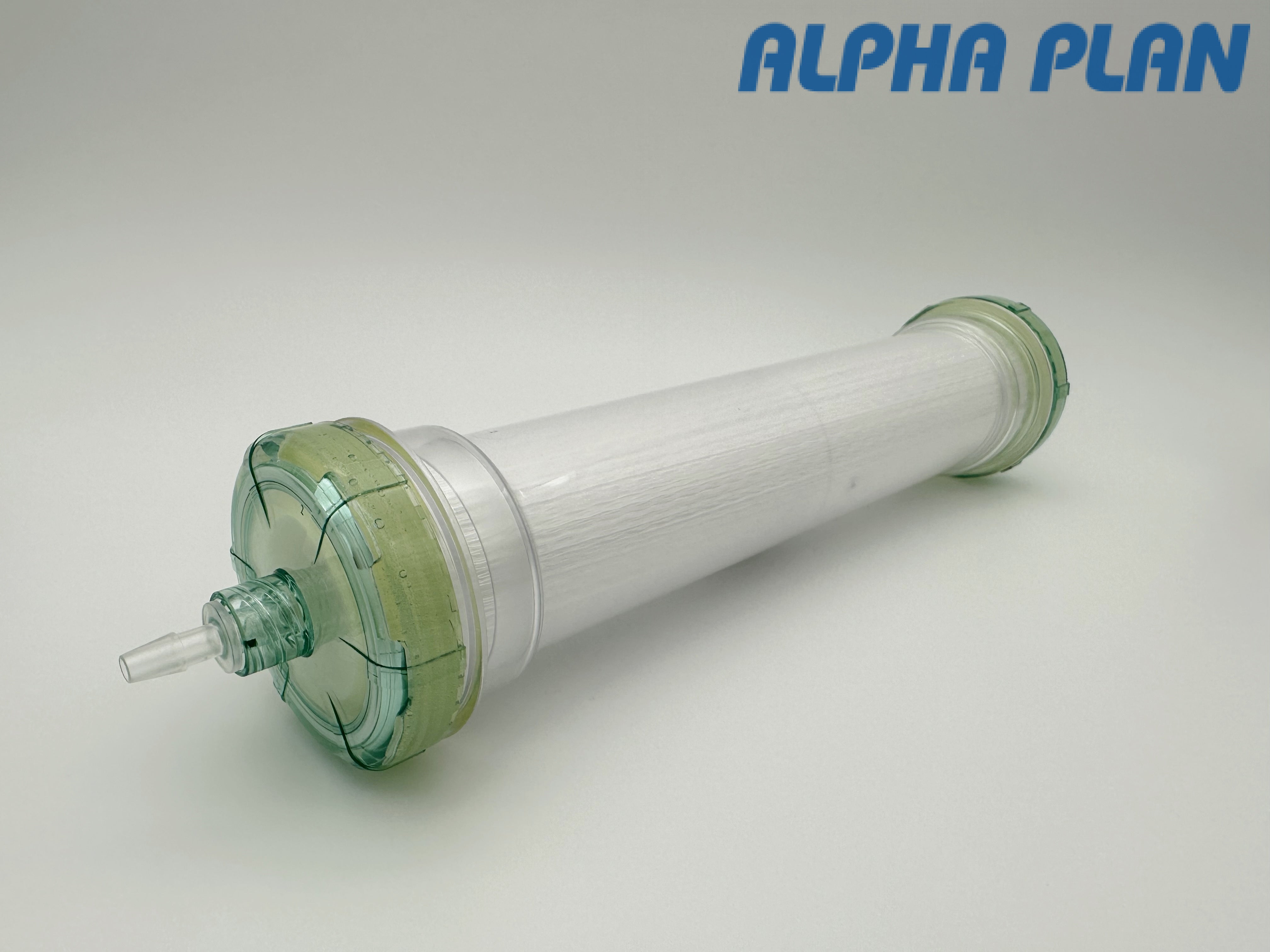

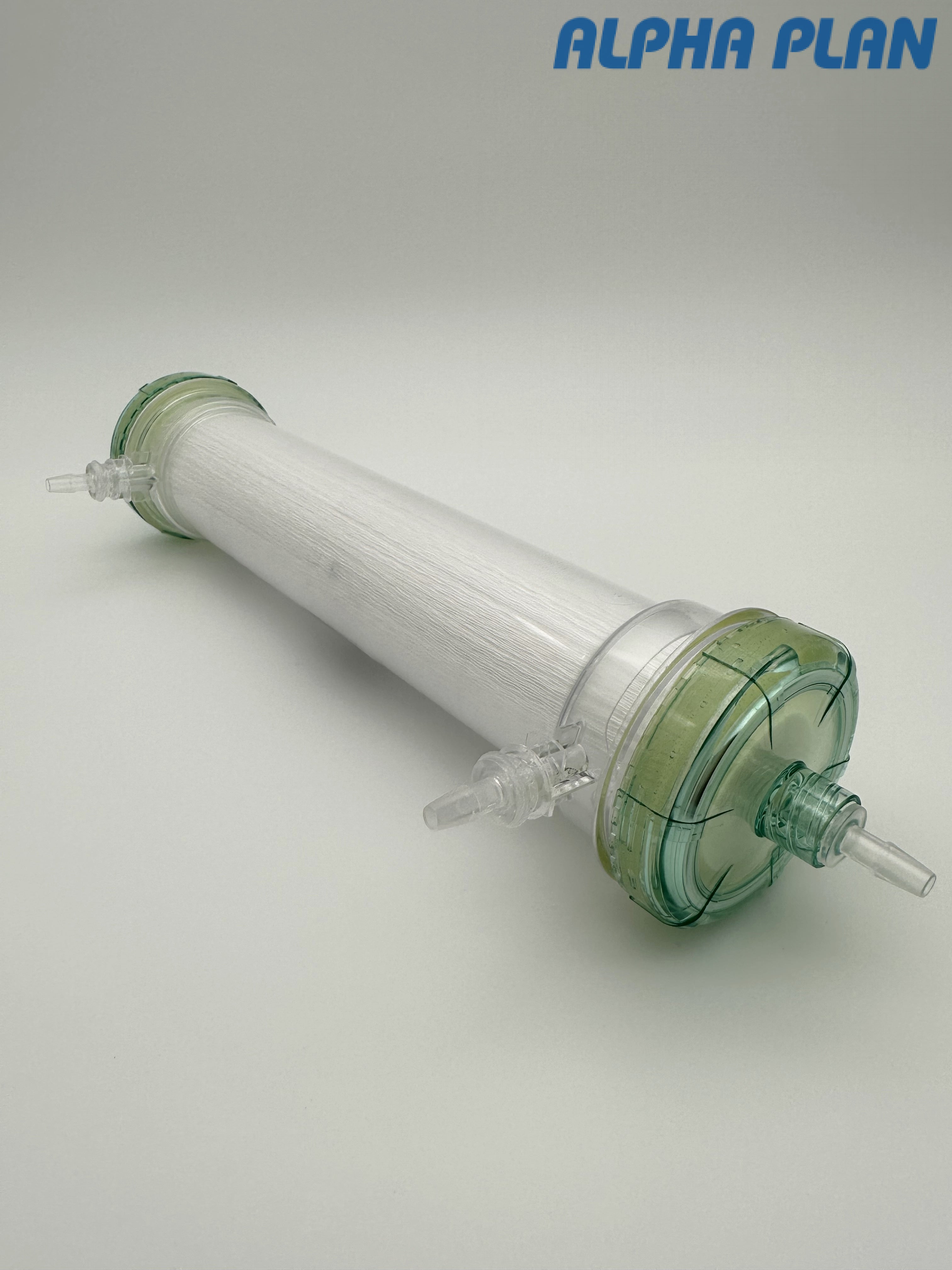

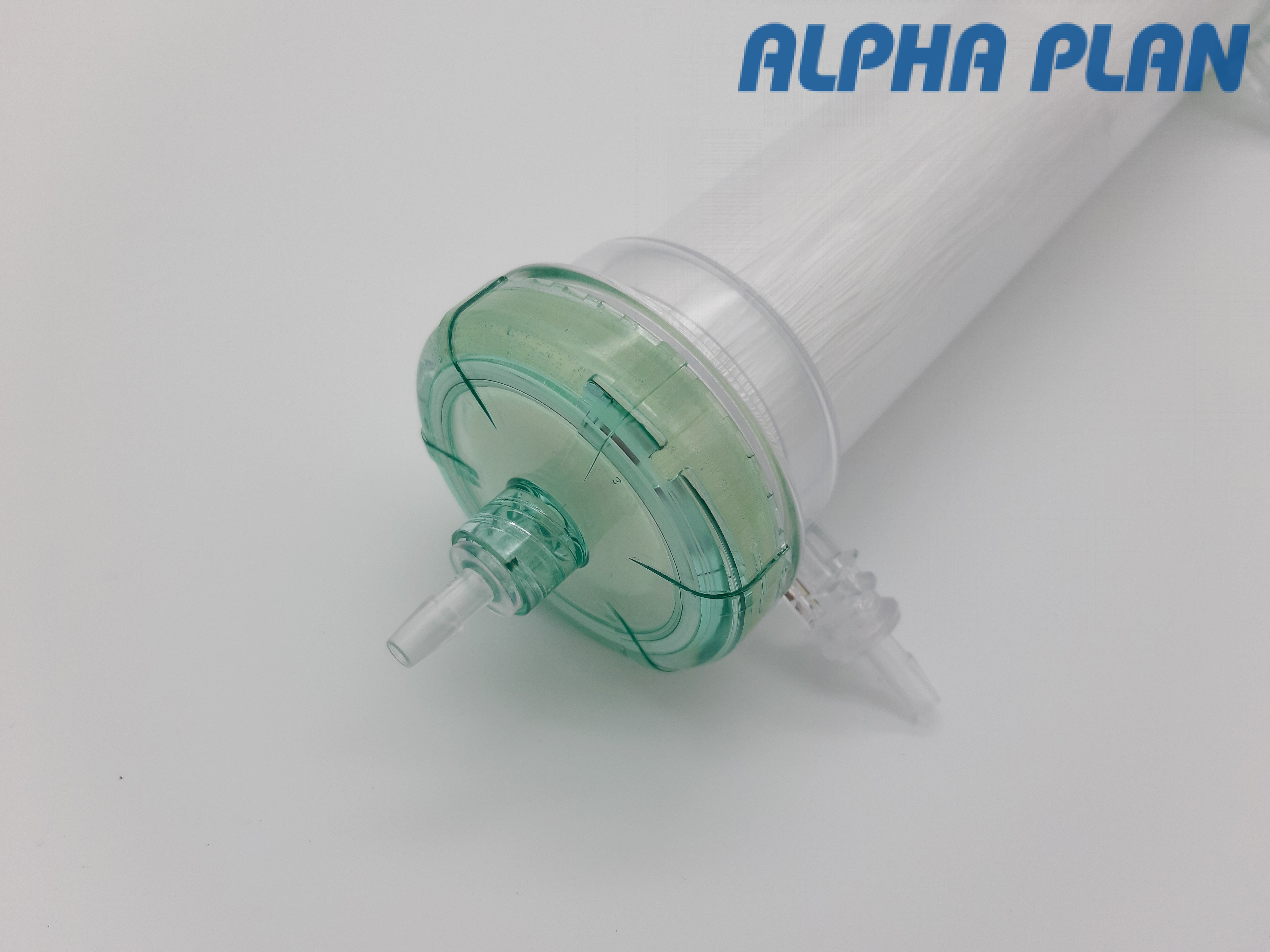

Our hollow fiber filter Ultra XL - 10000 / 5 kDa is the perfect solution for ultrafiltration applications! This product is single-use and has been integrity tested to ensure it is ready to use. With an effective membrane area of 9.8 m², this filter provides excellent filtration performance.
In addition, our hollow fiber filters can be used for upscaling - from the laboratory to pilot and process scale. You can ensure reliable filtration in any phase of your project with these products.
Product Specification
| Art. No. | Product | Dimension (Ø/Length) | Membrane | MWCO | Connection ports | ICS area | ECS area | Inner volume | Outer volume |
|---|---|---|---|---|---|---|---|---|---|
| 510170 | Ultra XL – 10000 / 5 kDa | 32,3 / 260 mm | Polysulfone | 5 kDa | Hose Barb 6.0 mm | 9.8 m² | 13.7 m² | 54 ml | 93 ml |
MWCO – Molecular Weight Cut-Off; ICS – Intra Capillary Space; ECS – Extra Capillary Space; TMP – Trans-membrane pressure, FLC – Female Luer Connector; Ø – housing diameter; Length – housing length w/0 end caps and connectors
