Product Description

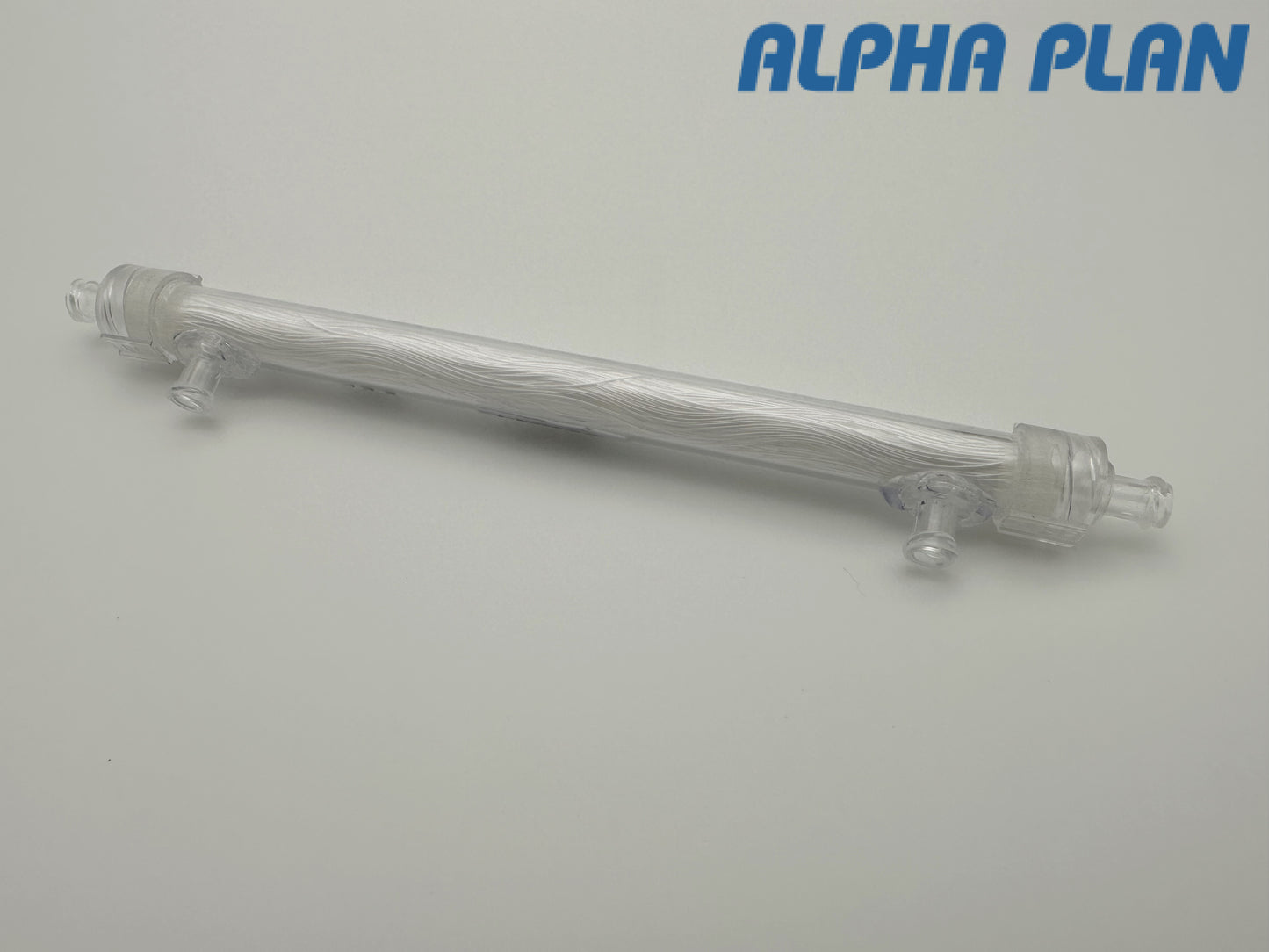

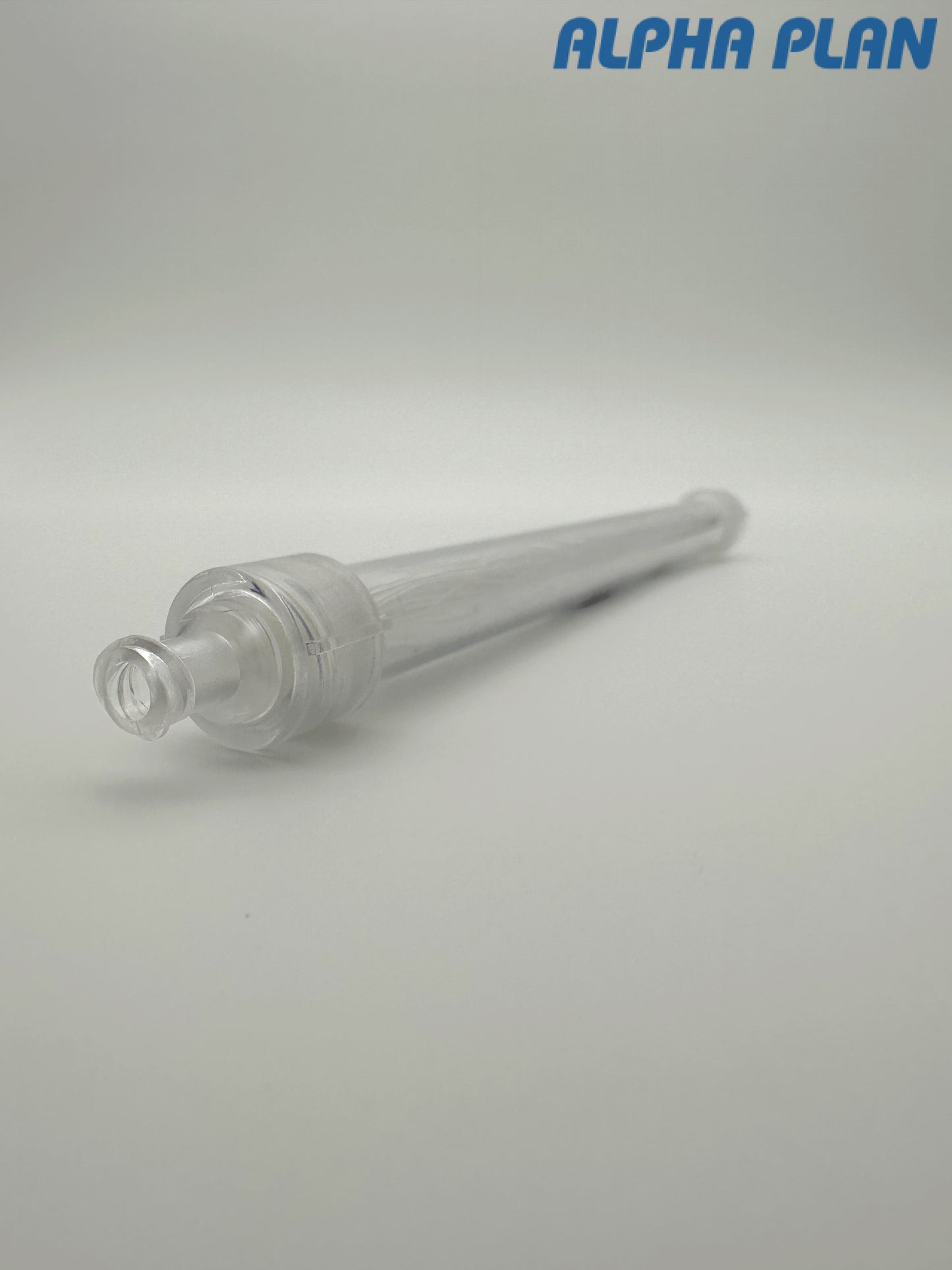

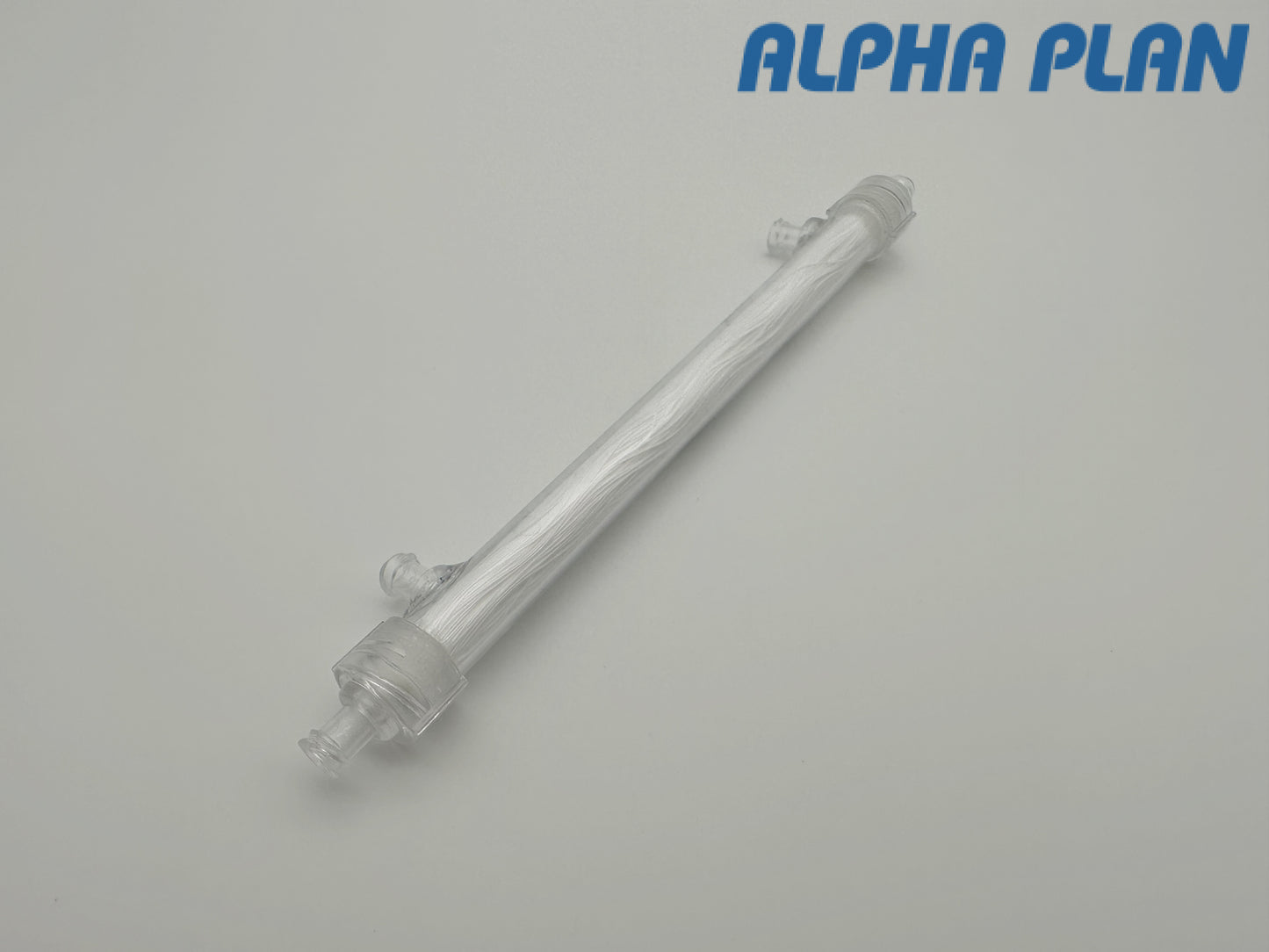

Our hollow fiber filter Ultra M - 400 / 20 kDa is the perfect solution for ultrafiltration applications! This product is single-use and has been integrity tested to ensure it is ready to use. With an effective membrane area of 380 cm², this filter provides excellent filtration performance.
In addition, our hollow fiber filters can be used for upscaling - from the laboratory to pilot and process scale. You can ensure reliable filtration in any phase of your project with these products.
Product Specification
| Art. No. | Product | Dimension (Ø/Length) | Membrane | MWCO | Connection ports | ICS area | ECS area | Inner volume | Outer volume |
|---|---|---|---|---|---|---|---|---|---|
| 510114 | Ultra M – 400 / 20 kDa | 12 / 150 mm | Polysulfone | 20 kDa | FLC | 380 cm² | 530 cm² | 2.2 ml | 4.7 ml |
MWCO – Molecular Weight Cut-Off; ICS – Intra Capillary Space; ECS – Extra Capillary Space; TMP – Trans-membrane pressure, FLC – Female Luer Connector; Ø – housing diameter; Length – housing length w/0 end caps and connectors
